High Pressure Hose

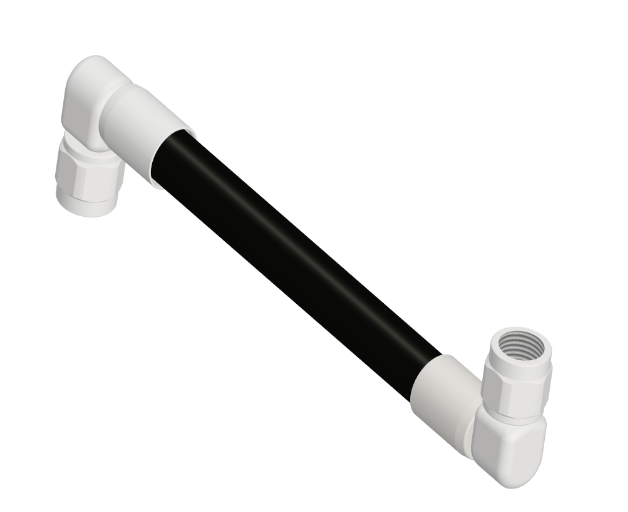

Hy-Flex (90° Fittings)
Specifications
Hose Material: Synthetic Rubber Core Tube, Textile Braid, Synthetic Rubber Outer Cover
Fitting Material: Stainless Steel
Maximum Rated Working Pressure: 5000 Psig (350 Bar)
Minimum Burst Pressure: 10000 Psig (700 Bar)
Operating Temperature Range: -65°F - 250°F (-54°C - 121°C)
Available Variations
| Part # | Connection Type | Hose | Hose ID | Wrench Size |
|---|---|---|---|---|
| A-54414-(L) | -5JIC (F) 90° x -5JIC (F) | -5 | 1/4 In (6 mm) | 5/8 |
| A-54385-(L) | -6JIC (F) 90° x -6JIC (F) | -5 | 1/4 In (6 mm) | 11/16 |
| A-55027-(L) | -6JIC (F) 90° x -6JIC (F) 90° | -5 | 1/4 In (6 mm) | 11/16 |
| A-55029-(L) | -6JIC (F) 90° x -6JIC (F) 90° | -5 | 1/4 In (6 mm) | 11/16 |
