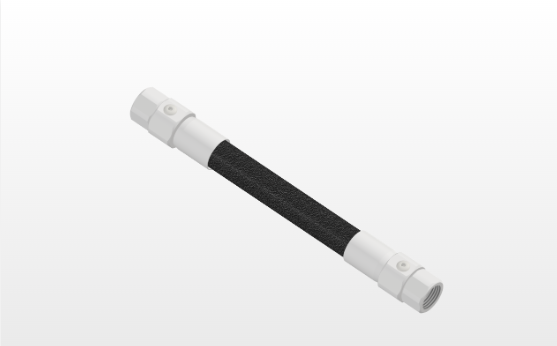

High Pressure Hose Hy-Flex (Swivel Fittings)
SPECIFICATIONS
Hose Material: Synthetic Rubber Core Tube, Textile Braid, Synthetic Rubber Outer Cover
Fitting Material: Stainless Steel
Maximum Rated Working Pressure: 5000 Psig (350 Bar)
Minimum Burst Pressure: 10000 Psig (700 Bar)
Operating Temperature Range: -65°F - 250°F (-54°C - 121°C)
Available Variations
| Product # | Weight | Thread Size/Type | Outside Diameter | Material |
|---|---|---|---|---|
| A-54713-(L) | -4JIC (F) SWIVEL x -5JIC (F) | -5 | 1/4 In (6 mm) | 5/8 |
| A-54816-(L) | -5JIC (F) SWIVEL x -5JIC (F) | -5 | 1/4 In (6 mm) | 5/8 |
| A-54748-(L) | -8JIC (F) SWIVEL x -8JIC (F) | -8 | 13/32 In (10 mm) | 7/8 |
| A-54749-(L) | -8JIC (F) SWIVEL x -8JIC (F) SWIVEL | -8 | 13/32 In (10 mm) | 7/8 |
| A-54889-(L) | -8JIC (F) SWIVEL x -8JIC SWIVEL | -8 | 13/32 In (10 mm) | 7/8 |
