SPECIFICATIONS

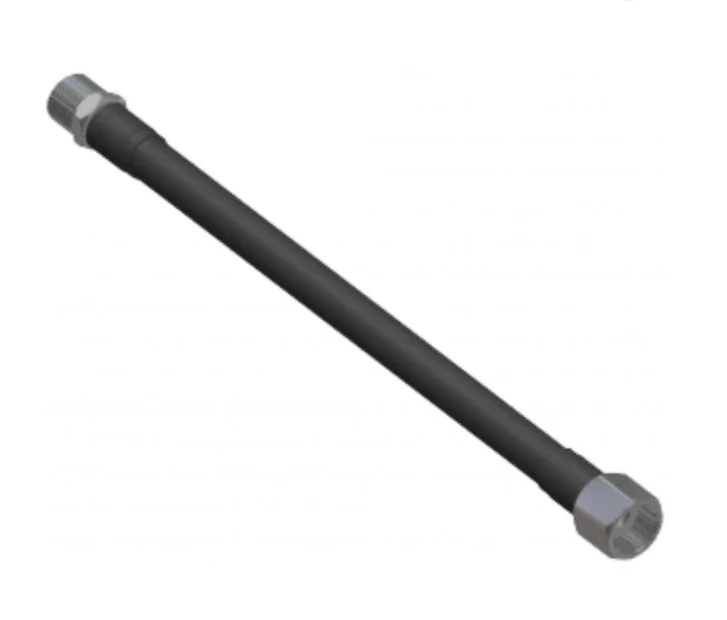

SPECIFICATION: A

Hose Material: Teflon Core Tube, Stainless Steel Braid, Silicone Rubber Outer Cover, Kink Protection Sleeves

• Outside Diameter: 17/32 In (25 mm)

• Inside Diameter: 5/16 In (8 mm)

• Maximum Rated Working Pressure: 2500 Psig (172 Bar)

• Minimum Burst Pressure: 10000 Psig (689 Bar)

• Operating Temperature Range: -100°F - 160°F (-73°C - 71°C)

• Wrench Hex Size: 13/16 In

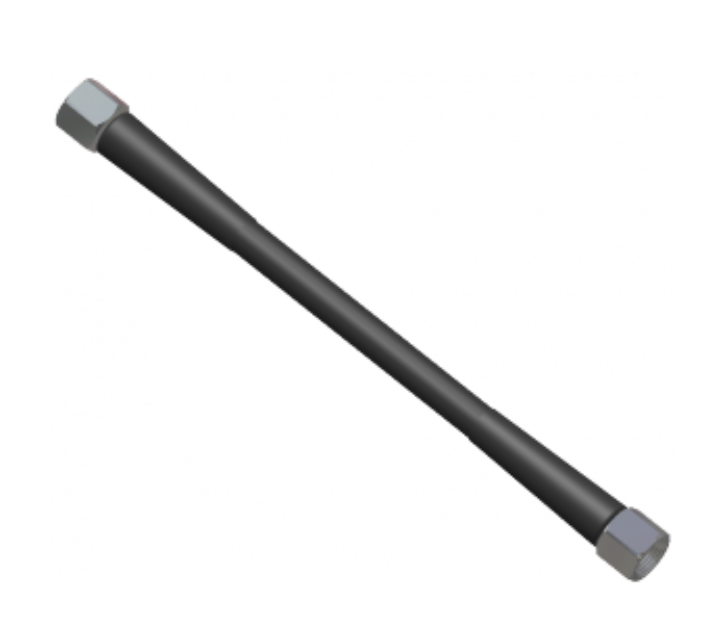

SPECIFICATION: B

• Hose Material: Teflon Core Tube, Stainless Steel Braid, Thermoplastic Outer Cover

• Fitting Material: Stainless Steel

• Outside Diameter: 9/16 In (14 mm)

• Inside Diameter: 5/16 In (8 mm)

• Maximum Rated Working Pressure: 2500 Psig (172 Bar)

• Minimum Burst Pressure: 12000 Psig (827 Bar)

• Operating Temperature Range: -70°F - 160°F (-57°C - 71°C)

• Wrench Hex Size: 13/16 In / 11/16 In

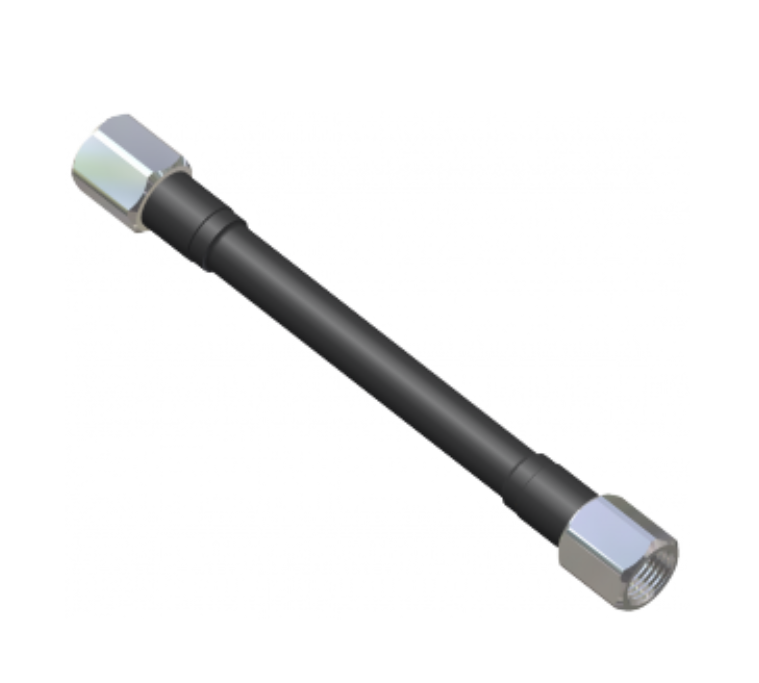

SPECIFICATION: C

• Hose Material: Teflon Core Tube, Stainless Steel Braid, Thermoplastic Outer Cover

• Outside Diameter: 1/2 In (13 mm)

• Inside Diameter: 1/4 In (6 mm)

• Maximum Rated Working Pressure: 3000 Psig (207 Bar)

• Minimum Burst Pressure: 12000 Psig (827 Bar)

• Operating Temperature Range: -70°F - 160°F (-57°C - 71°C)

• Wrench Hex Size: 5/8 In

High Pressure Hose Stainless Steel Braid
