High Pressure Hose
Hy-Flex (Straight Fittings)
Specifications
Hose Material: Synthetic Rubber Core Tube, Textile Braid, Synthetic Rubber Outer Cover
Fitting Material: Stainless Steel
Maximum Rated Working Pressure: 5000 Psig (350 Bar)
Minimum Burst Pressure: 10000 Psig (700 Bar)
Operating Temperature Range: -65°F - 250°F (-54°C - 121°C)
Available Variations
| Part # | Connection Type | Hose | Hose ID | Fitting Material | Wrench Size |
|---|---|---|---|---|---|
| A-54163-(L) | 1/8 NPT (M) X Female QD | -5 | 1/4 In (6 mm) | Stainless Steel | 9/16 |
| A-53801-(L) | 1/4 NPT (M) X 3/8 NPSM (F) | -5 | 1/4 In (6 mm) | Brass | 5/8 - 13/16 |
| A-54544-(L) | 1/4 NPT (M) X MALE QD | -5 | 1/4 In (6 mm) | Stainless Steel | 5/8 |

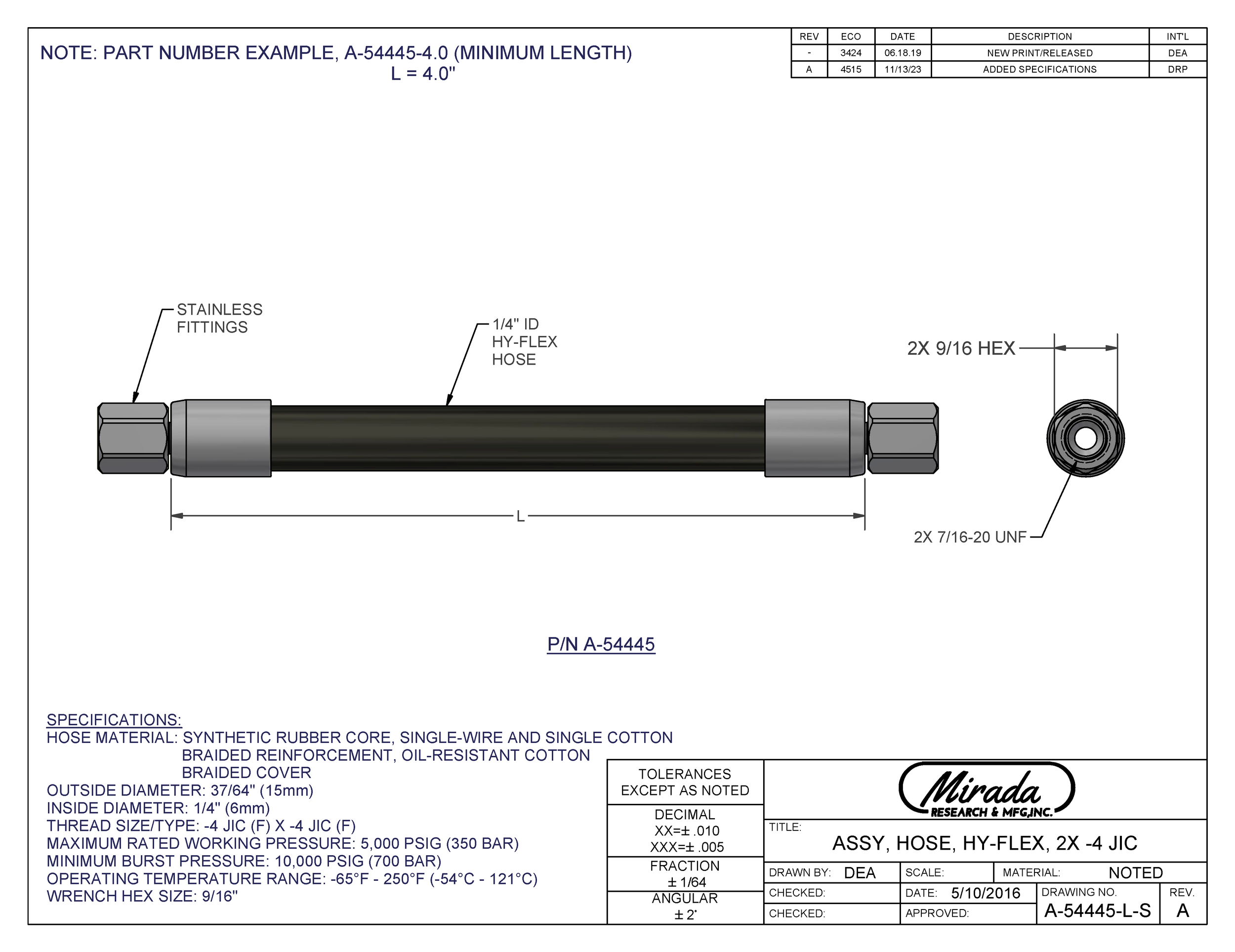

| A-54445-(L) | -4JIC (F) X -4JIC (F) | -5 | 1/4 In (6 mm) | Stainless Steel | 9/16 |

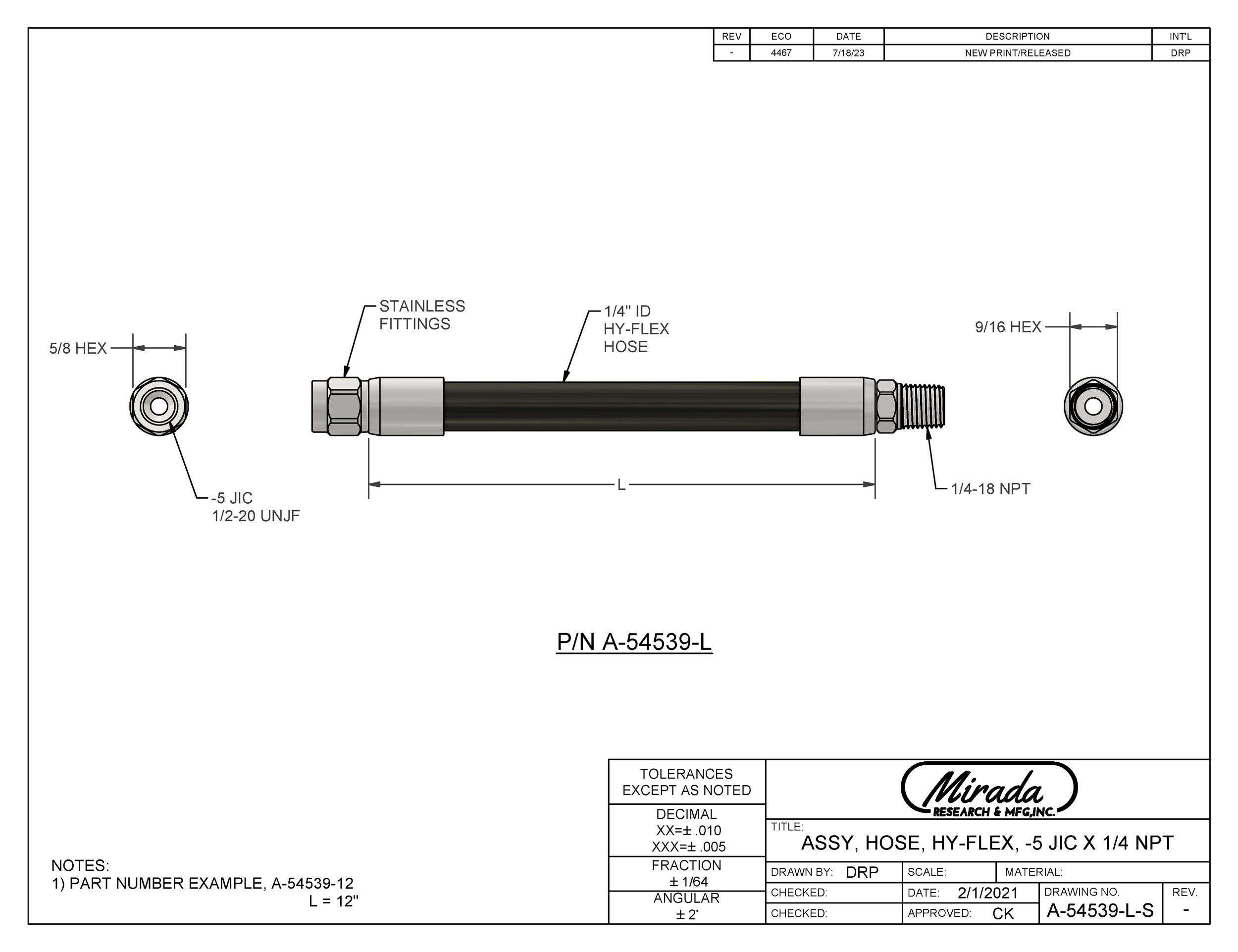

| A-54539-(L) | -5JIC (F) X 1/4 NPT (M) | -5 | 1/4 In (6 mm) | Stainless Steel | 5/8 |
| A-54117-(L) | -5JIC (F) X 1/8 NPT (M) | -5 | 1/4 In (6 mm) | Stainless Steel | 5/8 - 9/16 |
| A-54713-(L) | -5JIC (F) X -4JIC (F) (F) | -5 | 1/4 In (6 mm) | Stainless Steel | 5/8 |

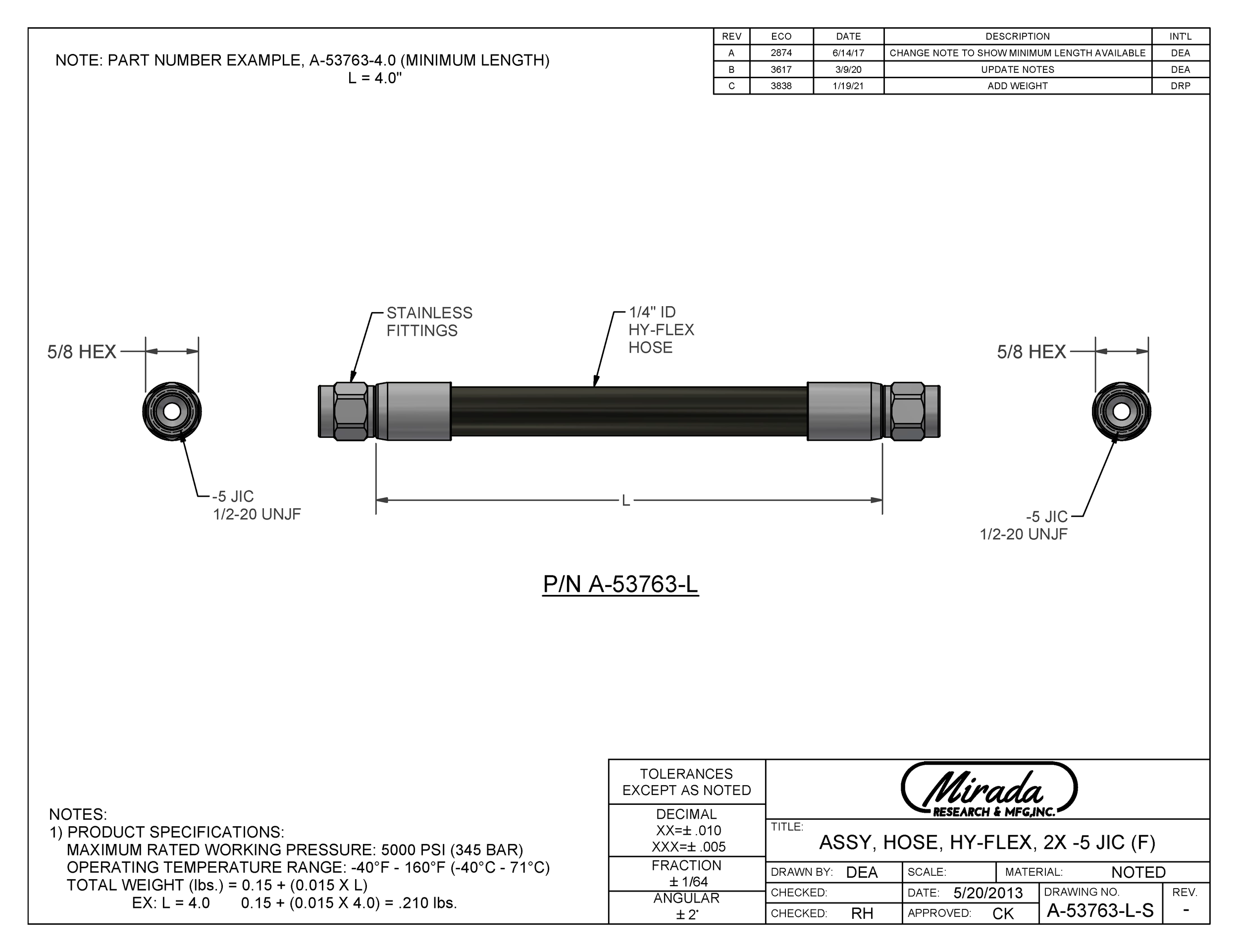

| A-53763-(L) | -5JIC (F) X -5JIC (F) (F) | -5 | 1/4 In (6 mm) | Stainless Steel | 5/8 |

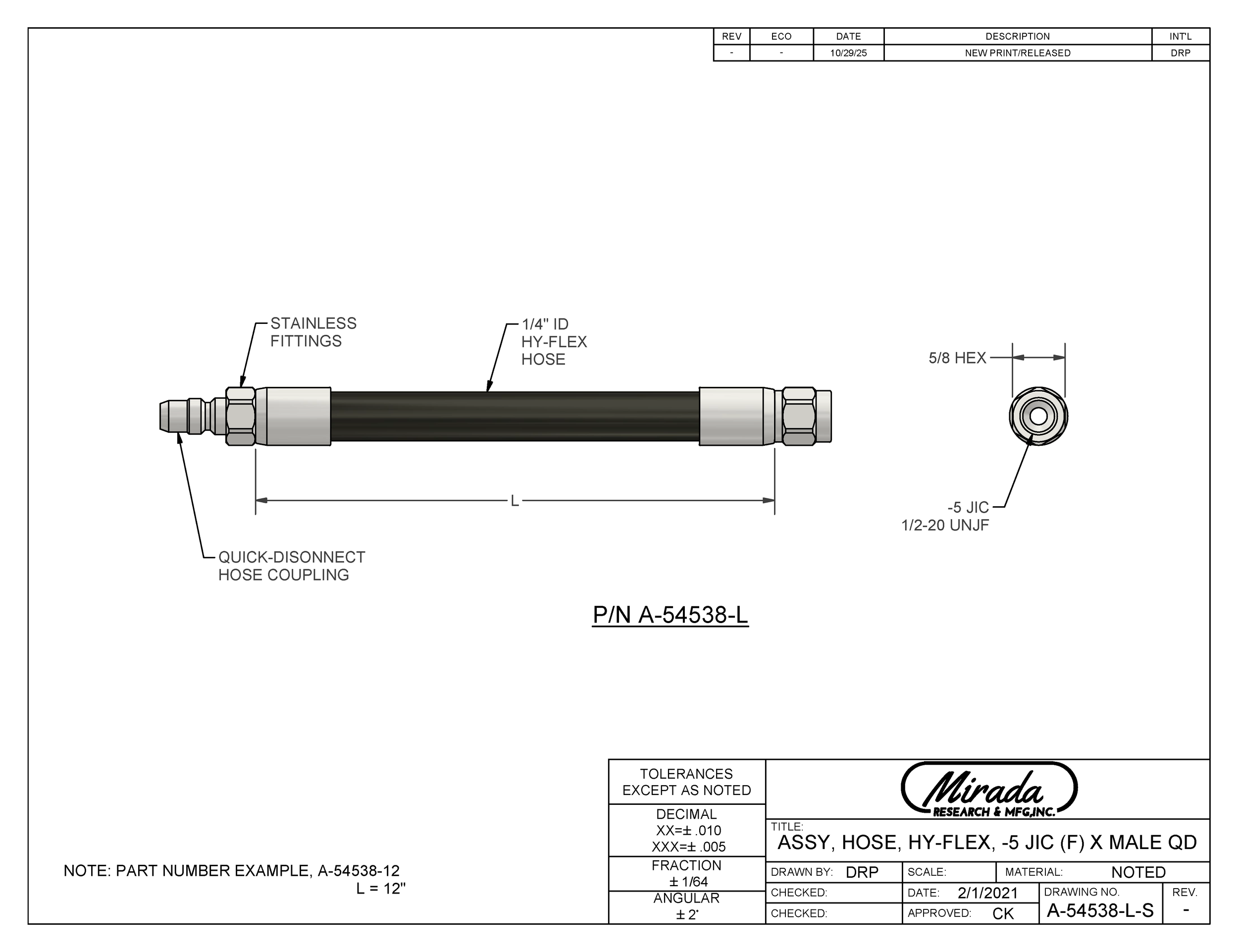

| A-54538-(L) | -5JIC (F) X MALE QD (F) | -5 | 1/4 In (6 mm) | Stainless Steel | 5/8 |

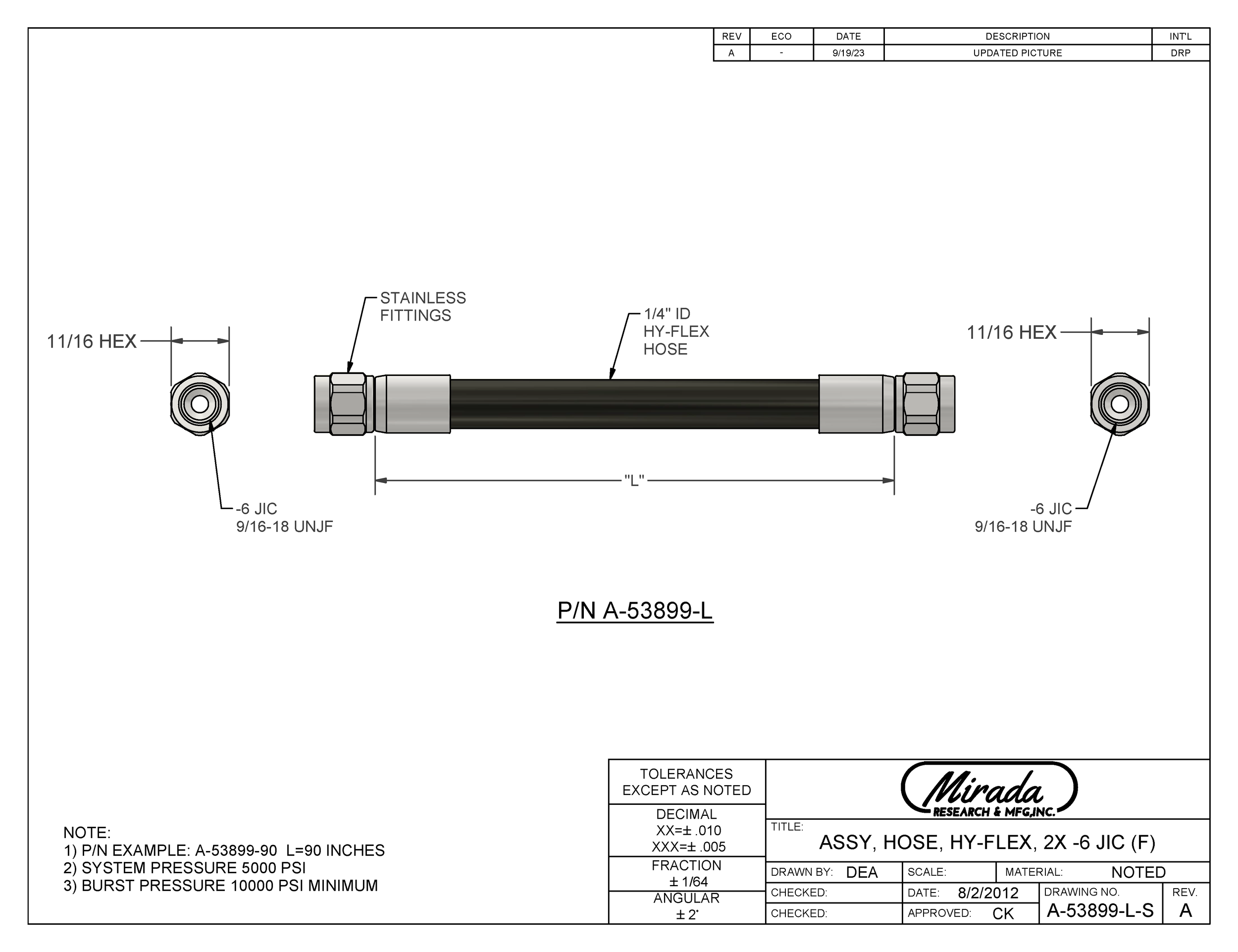

| A-53899-(L) | -6JIC (F) X -6JIC (F) | -5 | 1/4 In (6 mm) | Stainless Steel | 11/16 |

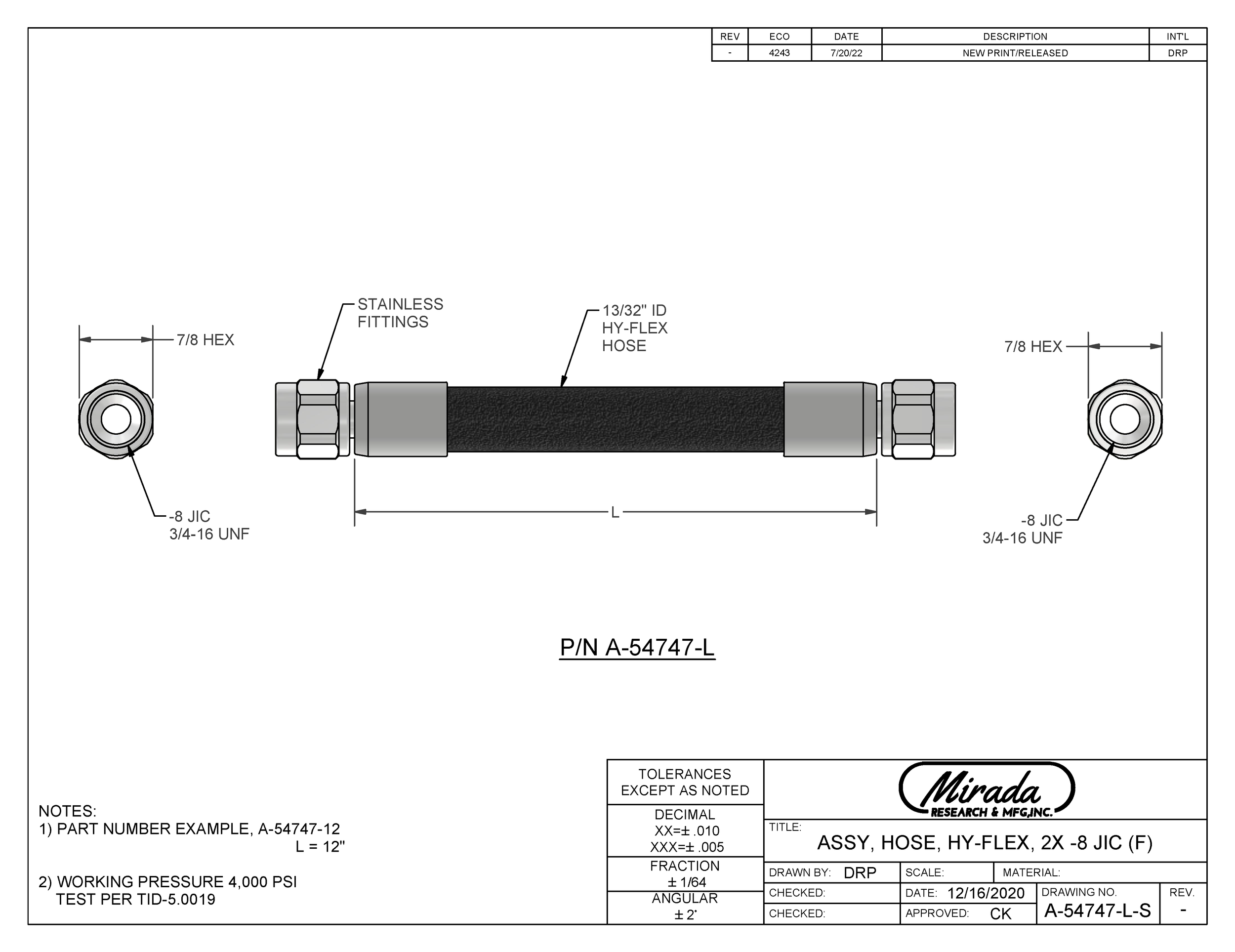

| A-54747-(L) | -8JIC (F) X -8JIC (F) | -8 | 13/32 In (10 mm) | Stainless Steel | 7/8 |
