Accessories

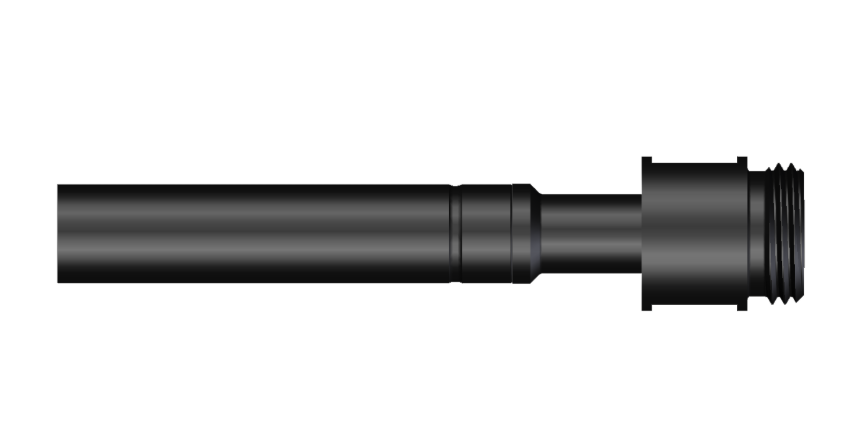

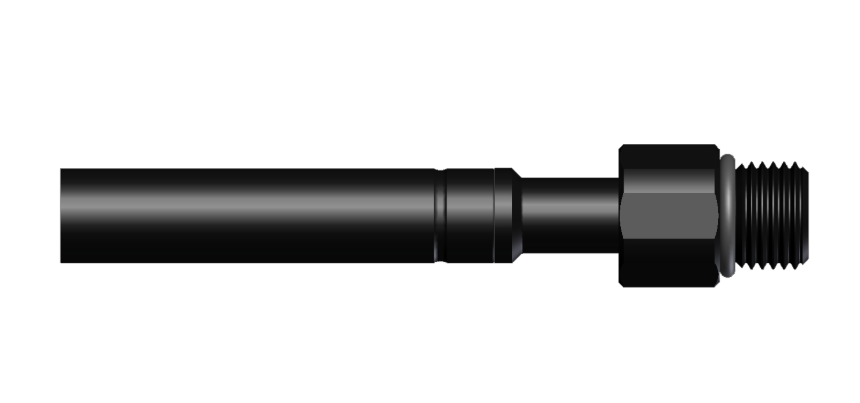

Siphon Tube

SPECIFICATIONS

Largest Outside Diameter: 11/16 In (17 mm)

Thread Size/Type: 1/2-20UNF (M)
Wrench Size: 5/8 In
Material: Anodized Aluminum


  Available Variations

  Available Variations

        Product #
        Weight
        Length

    A-53017-8.06 lb8 in

A-53017-12.09 lb (40g) 12 in

A-53017-19.12 lb (54g)19 in

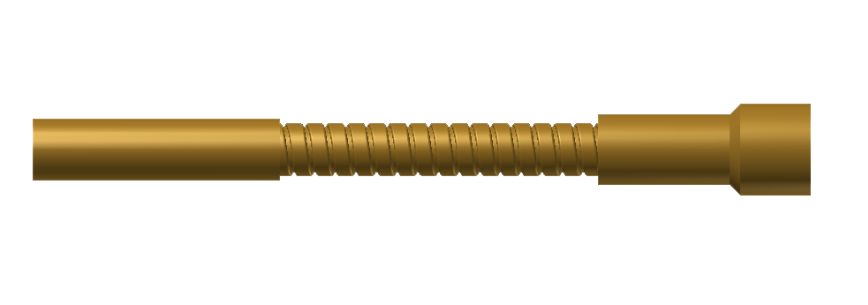

Siphon Tube

A-53814

SPECIFICATIONS

Weight: 0.12 lb (54g)
Length: 8.25 in
Inside Diameter: 3/8 in
Outside Diameter: 7/16 in
Largest Outside Diameter: 5/8 in (16mm)
Material: Brass

Siphon Tube

SPECIFICATIONS

Thread Size/Type: 5/8-18UNF (M), Knuckle Fitting
Largest Outside Diameter: 21/32 In (17 mm)
Wrench Size: 5/8 In
Material: Anodized Aluminum

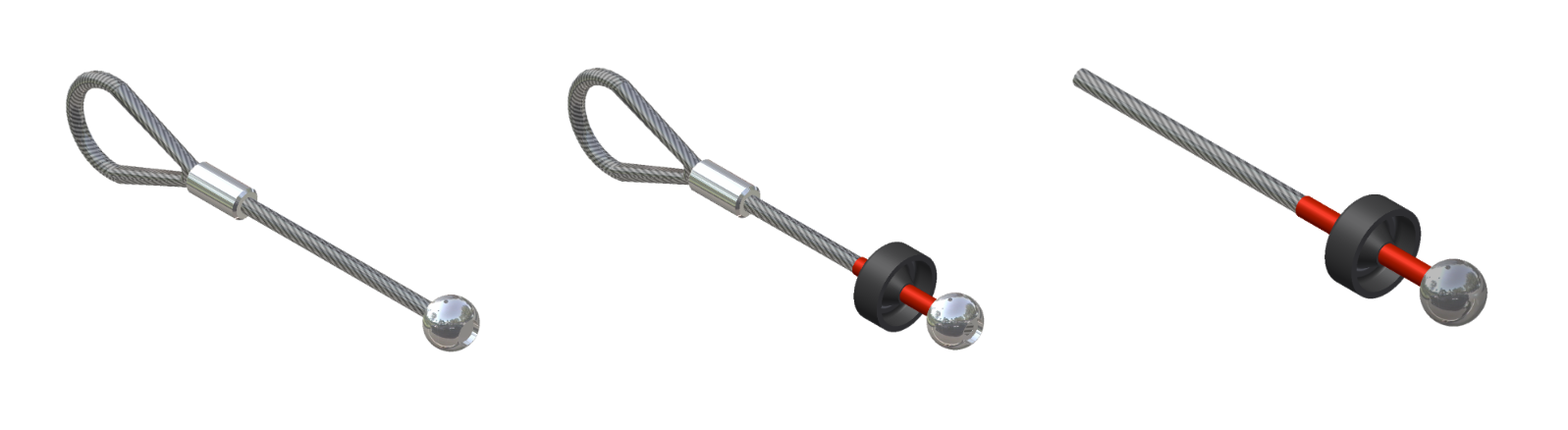

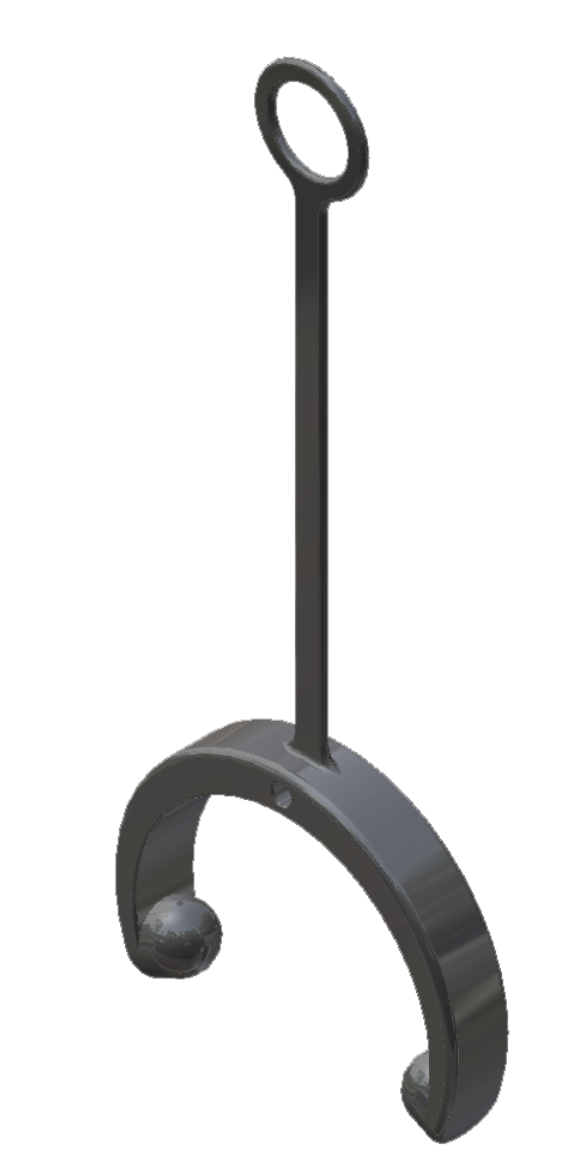

Pull Cable

Fits Series 1000, 3000/8000, 5000 and Series 9500


  Available Variations

  Available Variations

        Product #
        Feature
        Description
        NSN

    B-50992-3.5Standard1-7/8 In Loop, Grommet4010014482941
A-52005-(L)N/A1/4 In Loop, GrommetN/A
A-52006-(L)N/A1-7/8 In Loop, No Grommet, Dry Lubricant Coated BallN/A
A-53015-(L)N/ANo Loop, GrommetN/A
A-53154-(L)N/A1-7/8 In Loop, No GrommetN/A
A-53174-(L)N/A1-1/8 In (1/4 Pin) Loop, GrommetN/A
A-53284-(L)N/A1-7/8 In Loop, Grommet, Machined BallN/A
A-53356-(L)N/A1/4 In Loop, Grommet, Machined BallN/A
A-53392-(L)N/A1/4 In Loop, No GrommetN/A
A-53397-(L)N/A1/4 In Loop, Grommet, Safety Pin Dust CoverN/A
A-53510-(L)N/A1-1/8 In Loop with Insert, No GrommetN/A
A-53521-(L)N/ANo Loop, No GrommetN/A
A-53581-(L)N/A1-7/8 In Loop to fit 1/4 In Pin, No Grommet, Dri-Lube BallN/A
A-53628-(L)N/A1-7/8 In Loop, Grommet, Dri-Lube BallN/A
B-50992-(L)N/A1-7/8 In Loop, GrommetN/A
B-50992-5N/A1-7/8 In Loop, Grommet4010014482941
B-50992-96N/A1-7/8 In Loop, Grommet4010014505315


  Available Variations

  Available Variations

        Product #
        Feature

    A-51057216°F  Eutectic
A-51057-281281°F  Eutectic


  Available Variations

  Available Variations

        Product #
        Thread Size/Type
        Material

    A-532465/8-18 UNFStainless Steel

B-510511/12-20 UNFStainless Steel


  Available Variations

  Available Variations

        Product #
        Feature
        Material

    A-51913Break Specification:15-21 lbBlack

A-53155Break Specification: 20-26 lbBeige


  Available Variations

  Available Variations

        Product #
        Feature
        NSN

    A-53135with Warning TagN/A

A-51032without Warning Tag5315011980100


  Available Variations

  Available Variations

        Product #
        Weight
        Length

    A-53182-8.06 lb8 in
A-53182-12.09 lb (40g)12in
A-53192-19.12 lb (54g)19 in

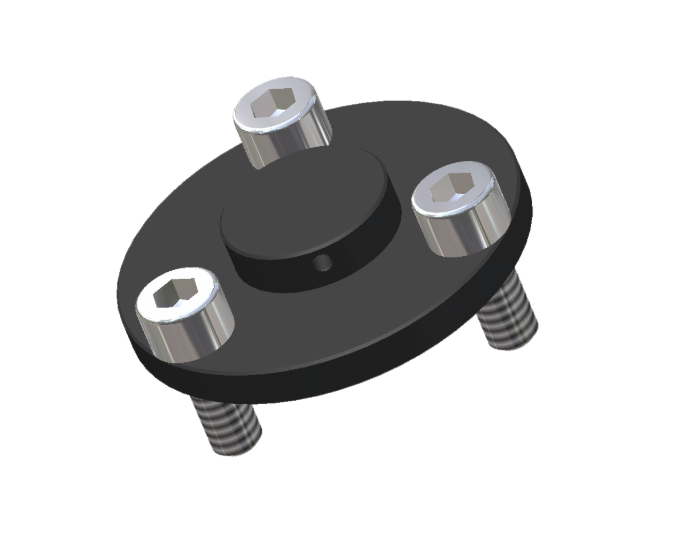

Diffuser Cover

A-51114-A

Attaches to the Series 3000 and 8000 inflation valve cylinder head. Must be removed prior to installation of the firing head to the cylinder head. Fits Series 3000/8000

SPECIFICATIONS

Material: Anodized Aluminum
NSN: 4940014569394

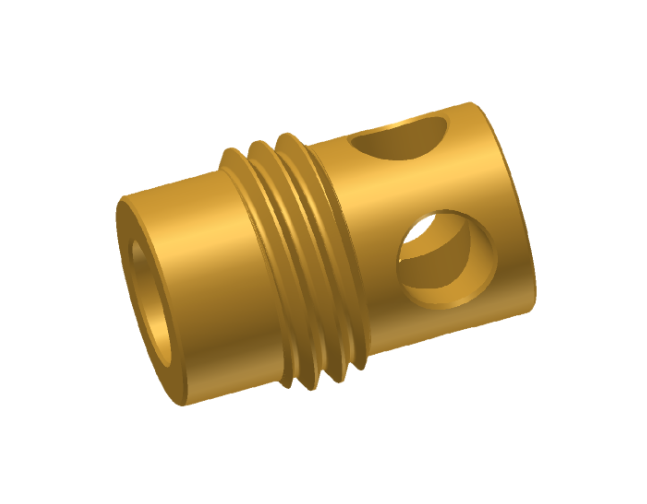

Diffuser Insert

A-51064

Interfaces with inflation valve outlet fittings incorporating a 3/8-24 female thread. Fits Series 1000, Series 3000/8000, Series 5000, Series 9500, Manual Inflation

SPECIFICATIONS

Material: Brass
Thread Size/ Type: 3/8-24 UNF (M)

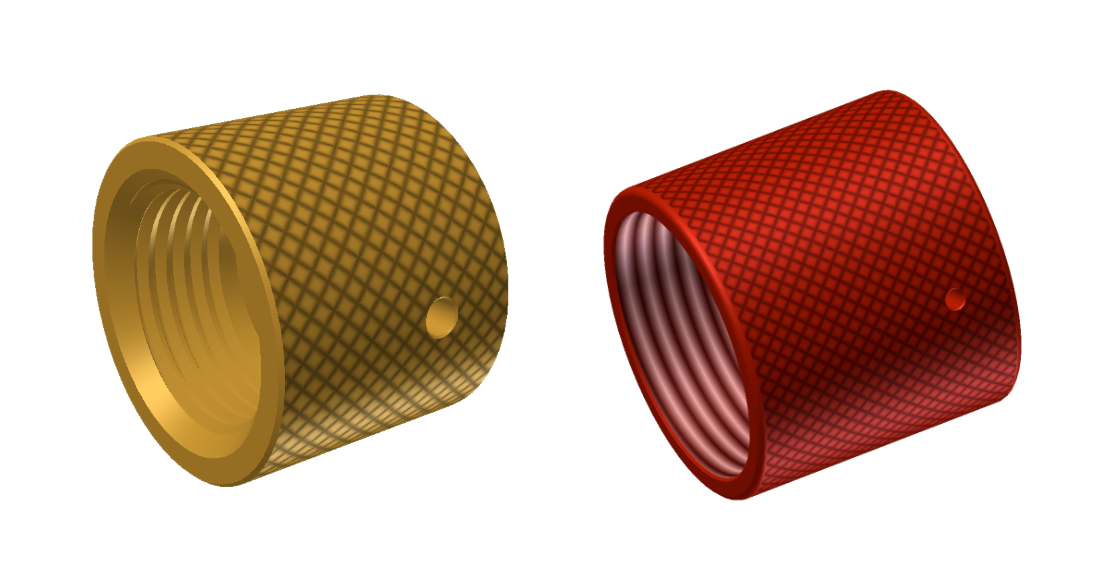

Diffuser Cap

Interfaces with an outlet fitting and used as a safety device when handling charged cylinders before connecting to raft. Fits Series 1000, Series 3000/8000, Series 5000, Series 9500, Manual Inflation

Break Away Pin

Used to control inflation valve actuation pull force. Fits Series 5000, Series 9500

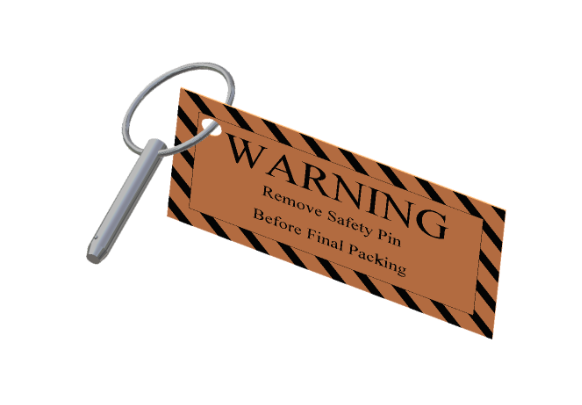

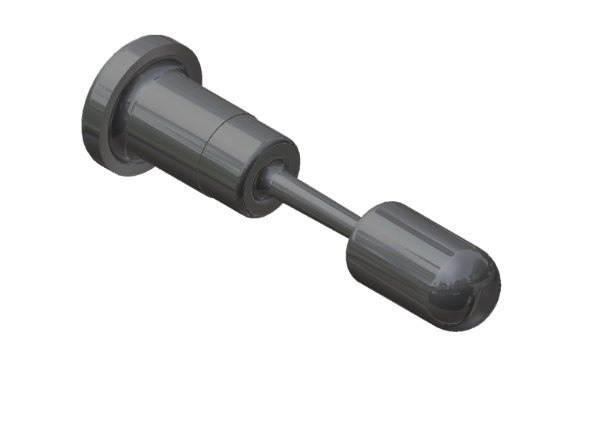

Safey Pin

Used to prevent accidental valve actuation during handling. Fits Series 3000/8000, Series 5000, Series 9500


 Avaliable Variations

    Product #
    Feature
    Thread Size/Type
    Material

A-51355Round Knurled Body-4, 7/16-20UNF (F)Brass
A-51146Round Knurled Body-5, 1/2-20UNF (F)Brass
A-51033Round Knurled Body-6, 9/16-18UNF (F)Brass
A-51975Hex Body-8, 3/4-16UNF (F)Steel
A-51976Hex Body-10, 7/8-14UNF (F)Steel
A-51977Hex Body-16, 1-5/16-12UN (F)Steel
A-51016Round Knurled Body3/8-18NPSM (F)Brass

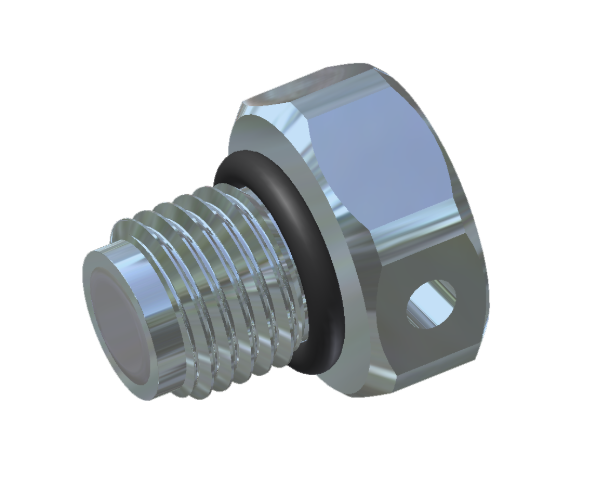

Fusible Plug

Used as heat activated safety pressure relief devices. Fits Series 1000, Series 3000/8000, Series 5000, Series 9500, Manual Inflation

SPECIFICATIONS

Weight: .05 lb (23 g)

Length: 3/4 In (19 mm)
Thread Size/Type: 7/16-20UNF (M)
Wrench Size: 11/16 In
Material: Nickel Plated Brass
NSN: 6620013419823

281°F Eutectic

A-53393-281

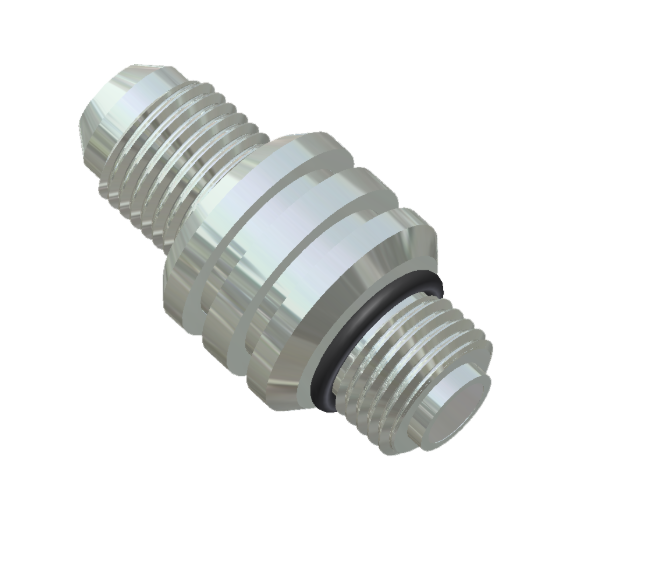

Exhausting gas can be directed to a remote location. Fits Series 1000, Series 3000/8000, Series 5000, Series 9500, Manual Inflation

SPECIFICATIONS

Inlet Diameter: 9/16-18UNJF (M)
Outlet Diameter: 9/16-18UNF (M)
Outlet Interface: -6 JIC
Weight: .15 lb (68 g)
Length: 1-3/4 In (44 mm)
Wrench Size: 3/4 In
Material: Nickel Plated Brass

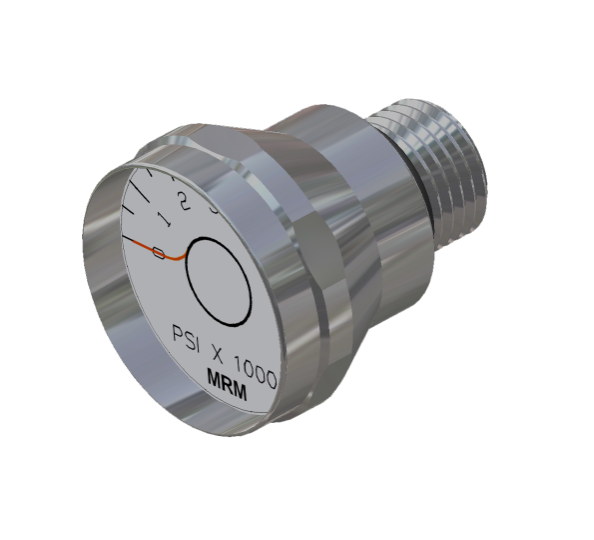

Pressure Gauge, 0-6000 Psig

These waterproof pressure gauges are designed to interface with our inflation valves. Fits Series 3000/8000, Series 5000, Series 9500, Manual Inflation

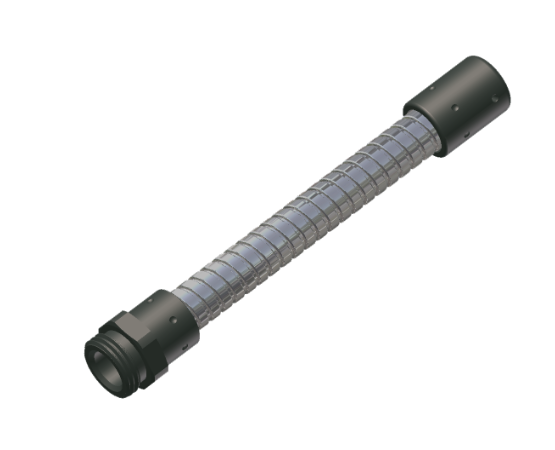

Pull Cable Housing

A-53199-(L)

Interfaces with Series 5000 and 9500 Inflation Valves and serves as a pull cable assembly conduit. Fits Series 5000, Series 9500

SPECIFICATIONS

Material: Stainless Steel

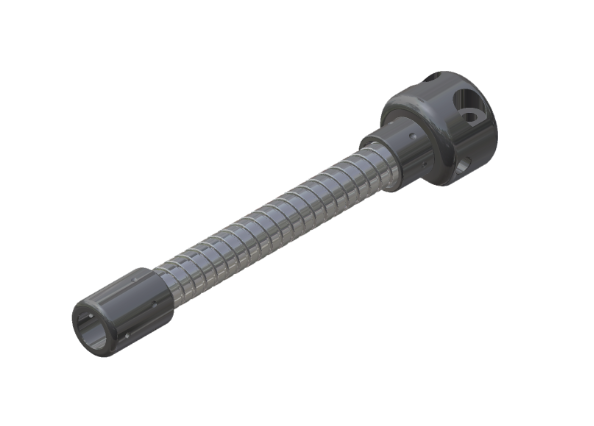

Pull Cable Housing

B-51043-(L)

Interfaces with Series 3000 and 8000 Inflation Valves and serves as a pull cable assembly conduit. Fits Series 5000, Series 9500

SPECIFICATIONS

Material: Stainless Steel

Dust Cover

A-53387

Attaches to Series 5000 and 9500 Inflation Valve pull cable housing to block off safety pin hole. Fits Series 5000, Series 9500

SPECIFICATIONS

Material: Delrin

Questions? Contact us

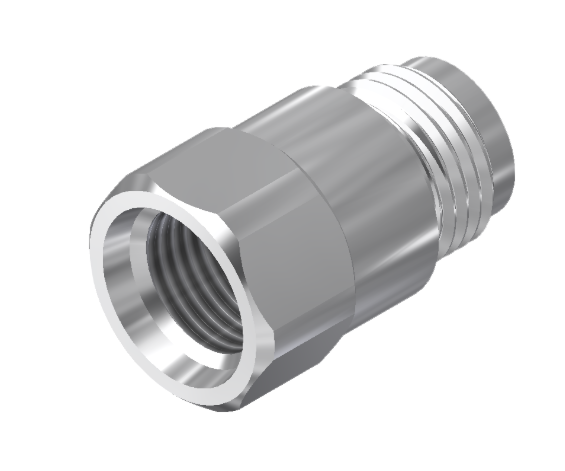

Adapter

Fits Series 1000, Series 3000/8000, Series 5000, Series 9500, Manual Inflation

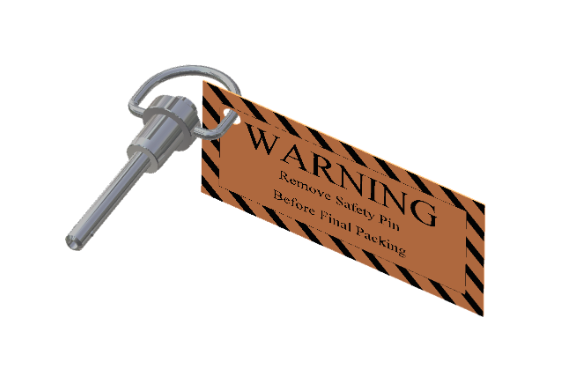

Safey Pin with Warning Tag and Button Release

A-53216

Used to prevent accidental valve actuation during handling. Fits Series 3000/8000, Series 5000, Series 9500


  Available Variations

  Available Variations

        Product #
        Feature
        Length
        Thread Size/Type
        Material

    A-51091Fill to Thermal1-1/16 in9/16-18 (M) x 7/16-20 (F)Stainless Steel
A-51869Gauge1-3/16 in1/2-20 (F) Port x 1/2-20 (F) JICStainless Steel
A-51876Safety Port to Gauge1 in5/8-18 (M) x 1/2-20 (F)Stainless Steel
A-51877Gauge to Safety Port1 in1/2-20(M) x 5/8-18 (F)Stainless Steel
A-51890Gauge to Fill1-3/16 in1/2-20 (M) x 9/16-18 (F)Stainless Steel
A-51891Fill to Gauge1 in9/16-18 (M) x 1/2-20 (F)Stainless Steel
A-53404Safety to Fill1-1/4 in5/8-18 (M) x 9/16-18 (F)Stainless Steel
A-53723Gauge Extender1-9/16 in1/2-20 (M) x 1/2-20 (F)Stainless Steel
A-53922Safety to Gauge1-9/16 in5/8-18 (M) x 1/2-20 (F)Stainless Steel
A-53930Fill to Gauge, Extended1-9/16 in9/16-18 (M) x 1/2-20 (F)Stainless Steel

Product #	Weight	Length
A-53017-8	.06 lb	8 in
A-53017-12	.09 lb (40g)	12 in
A-53017-19	.12 lb (54g)	19 in

Product #	Feature	Description	NSN
B-50992-3.5	Standard	1-7/8 In Loop, Grommet	4010014482941
A-52005-(L)	N/A	1/4 In Loop, Grommet	N/A
A-52006-(L)	N/A	1-7/8 In Loop, No Grommet, Dry Lubricant Coated Ball	N/A
A-53015-(L)	N/A	No Loop, Grommet	N/A
A-53154-(L)	N/A	1-7/8 In Loop, No Grommet	N/A
A-53174-(L)	N/A	1-1/8 In (1/4 Pin) Loop, Grommet	N/A
A-53284-(L)	N/A	1-7/8 In Loop, Grommet, Machined Ball	N/A
A-53356-(L)	N/A	1/4 In Loop, Grommet, Machined Ball	N/A
A-53392-(L)	N/A	1/4 In Loop, No Grommet	N/A
A-53397-(L)	N/A	1/4 In Loop, Grommet, Safety Pin Dust Cover	N/A
A-53510-(L)	N/A	1-1/8 In Loop with Insert, No Grommet	N/A
A-53521-(L)	N/A	No Loop, No Grommet	N/A
A-53581-(L)	N/A	1-7/8 In Loop to fit 1/4 In Pin, No Grommet, Dri-Lube Ball	N/A
A-53628-(L)	N/A	1-7/8 In Loop, Grommet, Dri-Lube Ball	N/A
B-50992-(L)	N/A	1-7/8 In Loop, Grommet	N/A
B-50992-5	N/A	1-7/8 In Loop, Grommet	4010014482941
B-50992-96	N/A	1-7/8 In Loop, Grommet	4010014505315

Product #	Thread Size/Type	Material
A-53246	5/8-18 UNF	Stainless Steel
B-51051	1/12-20 UNF	Stainless Steel

Product #	Weight	Length
A-53182-8	.06 lb	8 in
A-53182-12	.09 lb (40g)	12in
A-53192-19	.12 lb (54g)	19 in
