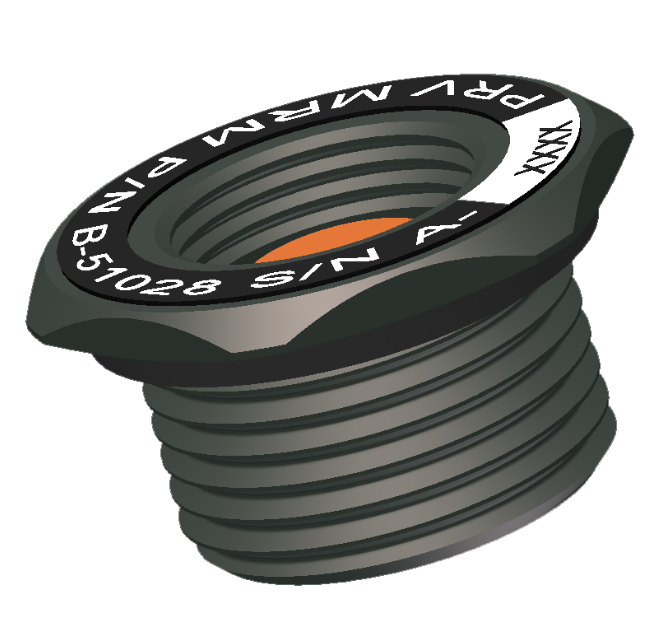

Medium Flow Low Profile
Specifications
Flange Interface Thread: 1-1/16-12UN
Weight: .05 lb (23 g)
Overall Height: 13/16 In (21 mm)
Standoff Above Flange: 1/8 (3 mm)
Wrench Hex Size: 1-3/8 In
Material: Anodized Aluminum
Patent No. US 5,971,016
Available Accessories
Available Variations
| Product # | Opening Range (PSIG) | Opening Range (KPA) | Minimum Close (PSIG) | Minimum Close (KPA) |
|---|---|---|---|---|
| A-53859 | 2.3-2.5 | 16 - 17 | 2.1 | 14 |
| B-51028 | 2.3 - 2.5 | 16 - 17 | 1.8 | 12 |
