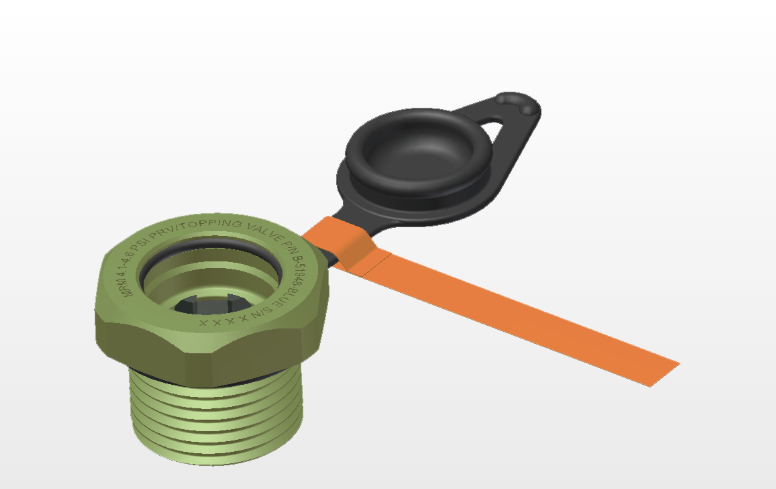

Hold Open, with Cap
Specifications
Flange Interface Thread: 1-1/16-12UN
Inlet Diameter: 7/8 In (22 mm)
Weight: .07 lb (32 g)
Overall Height: 1-1/8 In ( 29 mm)
Standoff Above Flange: 3/8 In (10 mm)
Wrench Hex Size: 1-3/8 In
Material: Anodized Aluminum
Available Variations
| Product # | Opening Range (Psig) | Opening Range (kPa) | Minimum Close (Psig) | Minimum Close (kPa) |
|---|---|---|---|---|
| B-51948-2.1-2.4 | 2.5–2.7 Psig | 17–19 kPa | 2.1 Psig | 14 kPa |
| B-51948-3.5-4.0 | 4.1–4.6 Psig | 28–32 kPa | 3.5 Psig | 24 kPa |
Accessories Available
