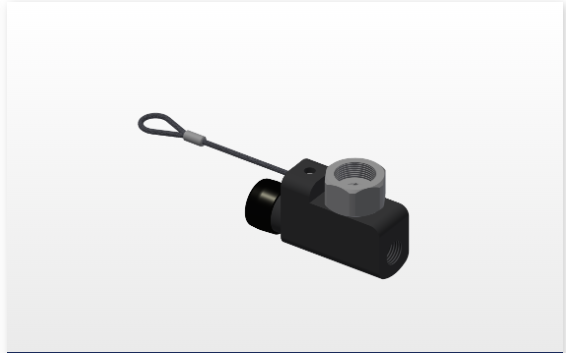

Series 1000

This valve is designed to interface with disposable gas cylinders. Popular applications include single seat life rafts or similar devices which require a small volume of gas to achieve full inflation. Additional configurations are available to meet your specific application.

SPECIFICATIONS

Product Specification Requirements:

• Effective Flow Area: .0078 sq/in

• Construction Material: 6061 Aluminum

• Primary Exterior Surface Finish: Black Anodize

• Approximate Assembled Weight: .35 lb (158 g)

• Operating Temperature Range: -40°F - 160°F (-40°C - 71°C)

Service Fluid:

• Blended Gas

• Breathable Air

• Carbon Dioxide

• Nitrogen

Outlet Interface Options:

• -4 JIC Stationary Male A-53003

• -5 JIC Stationary Male B-52064

• -5 JIC Female Swivel B-52074

• 3/8-18NPSM Stationary Male A-53367

• 3/4-27UNS Female Swivel B-52075

Inlet Interface Options: 1/2-20UNF
