Series 5000

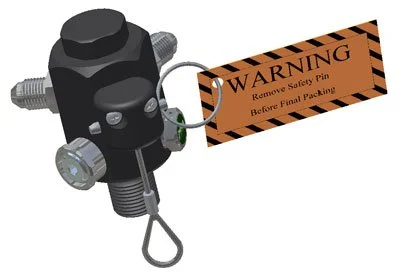

The Mirada Series 5000 Inflation Valve introduces a number of innovative design advances in “cutter-valve" technology. The heart of the valve assembly is a unique puncture disc cartridge component designed to simplify field servicing. This state-of-the-art single piece constructed valve utilizes a bayonet cutter design, which allows rapid release of compressed gas into the inflatable device. The Series 5000 Inflation Valve is available in lightweight anodized aluminum or stainless steel.


SPECIFICATIONS

Features/Benefits:

  • Single-piece cartridge assembly cutter valve construction for simplified servicing

  • Reliable static type primary seals for leakage free performance

  • Consistent actuation force with frangible retention pin

  • Actuation force unaffected by system gas pressure

  • Tru-Ball pull cable optional

  • Up-pull or down-pull pull cable housing attachment option

  • Pull cable conduit attachment available

  • Safety retention pin interface standard

  • Extremely versatile design allowing many inflation system interfacing options

  • Durable lightweight anodized aluminum, or very durable and corrosion resistant stainless steel construction available

Product Specification Requirements:

  • Maximum Rated Working Pressure: 5000 Psig (345 Bar)

  • Effective Flow Area: .0191 sq/in

  • Construction Material:

    • 6061 Anodized Aluminum

    • 303 Stainless Steel

  • Approximate Assembled Weight:

    • Aluminum: .82 lb (372 g)

    • Stainless Steel: 1.42 lb (644 g)

  • Operating Temperature Range:-40°F - 160°F (-40°C - 71°C)

Service Fluid:

  • Blended Gas

  • Breathable Air

  • Carbon Dioxide

  • Nitrogen

Safety Discharge:

  • Safety Burst Disc

  • Heat Fusible Plug (Optional)

Body Material Options:

  • Anodized Aluminum

  • Stainless Steel

Outlet Location Options:

  • Dual

  • Left

  • Right

  • Top

Outlet Interface Options:

  • -4 JIC (M), Stainless Steel

  • -4 JIC 90̊ (M), Stainless Steel Elbow

  • -5 JIC (M), Stainless Steel (Long)

  • -5 JIC (M), Free Rotating

  • -6 JIC (M), Stainless Steel (Short)

  • -6 JIC (M), Stainless Steel (Long)

  • 3/8-18 NPSM (M), Stainless Steel (Short)

  • 3/8-18 NPSM (M), Stainless Steel (Medium)

  • 3/8-18 NPSM (M), Brass (Medium)

  • 3/8-18 NPSM (M), Stainless Steel (Long)

  • 3/8-18 NPSM (M), Brass With Diffuser Nose

  • 3/8-18 NPSM (M), Stainless Steel With Diffuser Nose

  • 3/8-19 BSP (M), Stainless Steel

Inlet Interface Options:

  • 3/4-16UNF (M), Face Seal*

  • 3/4-16UNF (M), Port Seal (MS 33656)*

  • 7/8-14UNF (M), Face Seal

  • 7/8-14UNF (M), Port Seal (MS 33656)

  • 3/4-14NPSM (M), Face Seal

  • 3/4 NGT (M), Taper Pipe

  • 1-1/16-12UN (M), Port Seal (MS 33656)

  • 288 DIN (M), Tapered Pipe

  • 1-1/8-12UNF (M), Face Seal

  • 1-3/16-12UN (M), Port Seal (MS 33656)

  • 1 5/16-12UN (M), Port Seal (MS 33656)

Pull Cable Retainer Options:

  • Up Pull

  • Down Pull

  • Conduit

Maximum Rated Working Pressure: 3000 Psig (207 Bar)


US Patent: 6,260,570 and 5,647,390
