High Pressure HoseStainless Steel Braid
Specifications
-
- SPECIFICATION: A
- Hose Material: Teflon Core Tube, Stainless Steel Braid, Silicone Rubber Outer Cover, Kink Protection Sleeves
- Outside Diameter: 17/32 In (25 mm)
- Inside Diameter: 5/16 In (8 mm)
- Maximum Rated Working Pressure: 2500 Psig (172 Bar)
- Minimum Burst Pressure: 10000 Psig (689 Bar)
- Operating Temperature Range: -100°F - 160°F (-73°C - 71°C)
- Wrench Hex Size: 13/16 In
-
- SPECIFICATION: B
- Hose Material: Teflon Core Tube, Stainless Steel Braid, Thermoplastic Outer Cover
- Fitting Material: Stainless Steel
- Outside Diameter: 9/16 In (14 mm)
- Inside Diameter: 5/16 In (8 mm)
- Maximum Rated Working Pressure: 2500 Psig (172 Bar)
- Minimum Burst Pressure: 12000 Psig (827 Bar)
- Operating Temperature Range: -70°F - 160°F (-57°C - 71°C)
- Wrench Hex Size: 13/16 In / 11/16 In
- SPECIFICATION: C
- Hose Material: Teflon Core Tube, Stainless Steel Braid, Thermoplastic Outer Cover
- Outside Diameter: 1/2 In (13 mm)
- Inside Diameter: 1/4 In (6 mm)
- Maximum Rated Working Pressure: 3000 Psig (207 Bar)
- Minimum Burst Pressure: 12000 Psig (827 Bar)
- Operating Temperature Range: -70°F - 160°F (-57°C - 71°C)
- Wrench Hex Size: 5/8 In
Available Variations
| PRODUCT # |
Thread Size/Type |
Fitting Material |
SPECIFICATION |

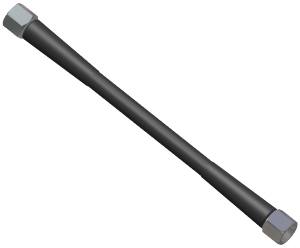

| B-51222-(L) |
3/8-18 NPSM (F) x 3/8-18 NPSM (F) |
Stainless Steel |
A |
| A-53566-(L) |
-6JIC (F) x -6JIC (F) |
Stainless Steel |
A |

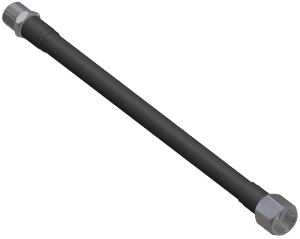

| A-53243-(L) |
3/8-18 NPSM (F) x 3/8-18 NPSM (F) |
Stainless Steel |
B |
| A-51143-HP-(L) |
-5JIC (F) x -5JIC (F) |
Stainless Steel |
C |

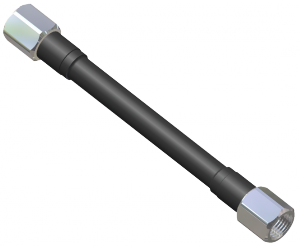

| A-51143-(L) |
-5JIC (F) x -5JIC (F) |
Brass |
C |
| A-51145-HP-(L) |
1/4-18NPT (M) x -5JIC (F) |
Stainless Steel |
C |
| A-53402-(L) |
1/4-18NPT (M) x 3/8-18NPSM (F) |
Brass / Stainless Steel |
C |
| B-52057-(L) |
1/4-18NPT (M) x 1/4-18NPT (F) |
Stainless Steel |
C |
