Specifications

A-53560-(L)

• • • Hose Material: Synthetic Rubber Core Tube, Textile Braid, Synthetic Rubber Outer Cover
    • Fitting Material: Stainless Steel
    • Outside Diameter: 5/8 In (16 mm)
    • Inside Diameter: 3/8 In (10 mm)
    • Thread Size/Type: -6JIC (F) x -6JIC (F)
    • Maximum Rated Working Pressure: 300 Psig (21 Bar)
    • Minimum Burst Pressure: 1200 Psig (84 Bar)
    • Operating Temperature Range: -40°F - 212°F (-40°C - 100°C)
  • Wrench Hex Size: 11/16 In

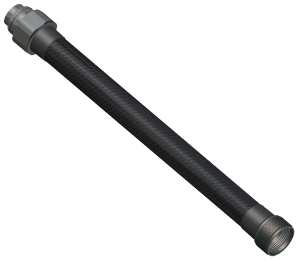

  B-51937-(L)


  • Hose Material: PVC Core Tube, Fiber Reinforcement, PVC Outer Cover
  • Fitting Material: Stainless Steel
  • Outside Diameter: 13/16 In (21 mm)
  • Inside Diameter: 1/2 In (13 mm)
  • Thread Size/Type: 13/16-20UNEF (F) x 7/8 Diameter Topping Valve Interface
  • Maximum Rated Working Pressure: 300 Psig (21 Bar)
  • Operating Temperature Range: -15°F - 150°F (-25°C - 65°C

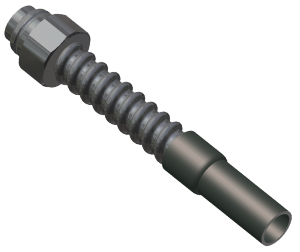

  B-51963 - Oral Inflation


  • Hose Material: PVC
  • Fitting Material: Nylon and Rubber
  • Outside Diameter: 11/16 In (21 mm)
  • Inside Diameter: 1/2 In (13 mm)
  • Thread Size/Type: Oral Inflation x 7/8 In Diameter Topping Valve Interface
  • Maximum Rated Working Pressure: 10 Psig (0.7 Bar)
  • Operating Temperature Range: 10 Psig (0.7 Bar)

  A-53386-(L) - Rotating Joint


  • Hose Material: Synthetic Rubber Core Tube, Textile Braid, Synthetic Rubber Outer Cover
  • Fitting Material: Anodized Aluminum
  • Outside Diameter: 3/4 In (19 mm)
  • Inside Diameter: 1/2 In (13 mm)
  • Thread Size/Type: 1-1/16-12UN (M) x 1/2-14NPT (M)
  • Maximum Rated Working Pressure: 300 Psig (21 Bar)
  • Operating Temperature Range: -40°F - 160°F (-40°C - 71°C)
  • Wrench Hex Size: 1-3/8 In / 7/8 In
