Products: Pressure Relief / Topping Valves

Standard

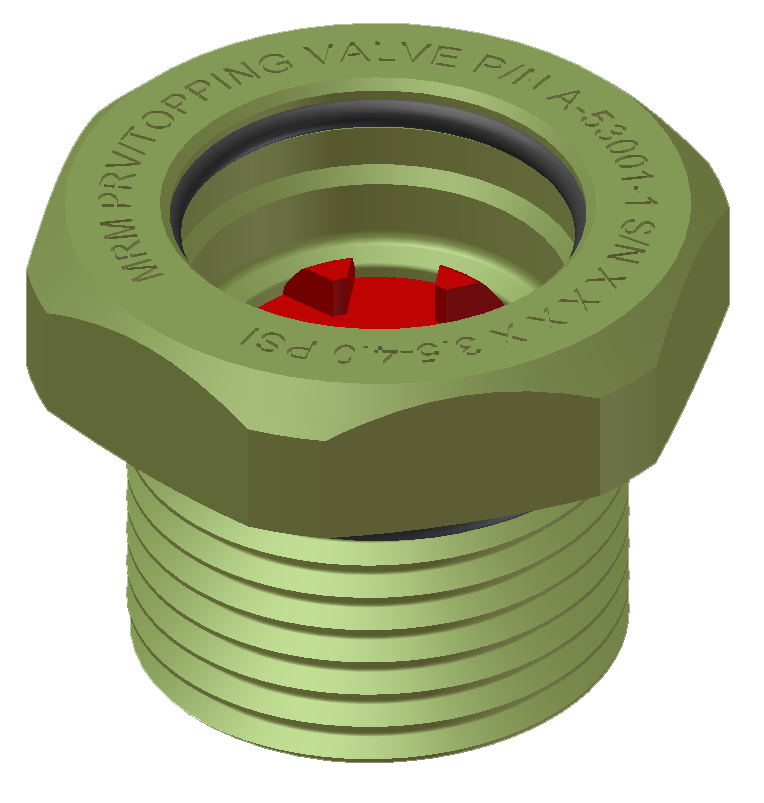

Product - Standard

Specifications

  • Flange Interface Thread: 1-1/16-12UN
  • Inlet Diameter: 7/8 In (22 mm)
  • Weight: .07 lb (32 g)
  • Overall Height: 1-1/8 In ( 29 mm)
  • Standoff Above Flange: 3/8 In (10 mm)
  • Wrench Hex Size: 1-3/8 In
  • Material: Anodized Aluminum

Available Variations

PRODUCT # Feature OPENING RANGE MINIMUM CLOSE
A-53047 with cap 2.5-2.7 Psig 17-19 kPa 2.1 Psig 14 kPa
A-53047-1 with O-ring 2.5-2.7 Psig 17-19 kPa 2.1 Psig 14 kPa
A-53001 with cap 4.1-4.6 Psig 28-32 kPa 3.5 Psig 24 kPa
A-53001-1 with O-ring 4.1-4.6 Psig 28-32 kPa 3.5 Psig 24 kPa
